INTRODUCTION

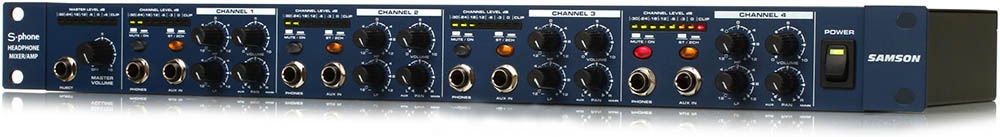

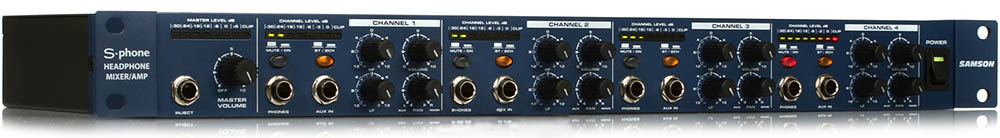

 S-phone 4-Ch Headphone Mixer/Amplifier


Treat your sound to a new kind of headphone amp!



You've never seen this kind of performance from a headphone amp at this price! The S-phone amplifier/mixer delivers the fully professional performance of a major studio processor while still leaving you with some money in your pocket! Featuring advanced analog signal processing, this four channel headphone amplifier puts you in total control of your sound. Featuring a Master Input for control of your overall stereo input; the ability to mix individual line signals with the main stereo input; mix control for each separate channel; and a 2-band equalizer on each channel, the S-phone offers incredible versatility in a 19" rackmount package!

Features:

·         2 Master Stereo Inputs plus Stereo Link Output

·         8 Segment LED Metering on Each Channel and Master

·         2-band Equalizer on Each Channel

·         3 Headphone Outputs per Channel (One Front Panel and Two Rear Panel Outputs)

·         Auxiliary Input with Balance Control provides four Channels of "More Me" Mixing

·         Mute and Stereo/2 Channel Mode Switches on Each Channel

·         Maximum Output Power on Each Channel (Regardless of Headphone Impedance)

·         Three-year Extended Warranty


Tech Specs

Input Channels

5

Output Channels

4

Analog Inputs

2 x 1/4" (TRS), 1 x 1/4" (TRS, Main Aux), 4 x 1/4" (Channel Aux)

Analog Outputs

12 x 1/4" (Headphones)

Controls per Channel

Volume, Pan, HF, LF

Form Factor

Rackmount

Height

1.75"

Depth

8.5"

Width

19"

Weight

5.5 lbs.

Manufacturer Part Number

SA-SPHONE
